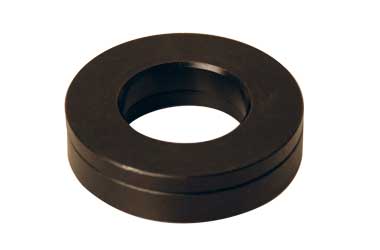

Spherical Washers
Material: Carbon Steel
Finish: Black Oxide
- Spherical washers act like a ball and socket to compensate for slight misalignment.
- Use in pairs, or use the bottom with our spherical flange nuts.
- Case hardened.
(Unit: Inch)

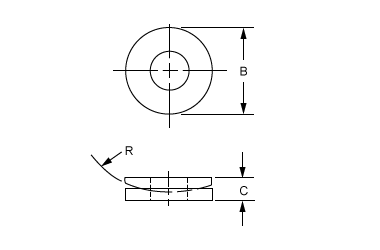

| Part No. | Stud Diameter | B | C | R | ||
|---|---|---|---|---|---|---|
| Set | Top Washers | Bottom Washers | ||||
| 826250 | 826350 | 826450 | 1/4 | 5/8 | 3/16 | 3/4 |
| 826255 | 826355 | 826455 | 5/16 | 3/4 | 1/4 | 1" |
| 826260 | 826360 | 826460 | 3/8 | 7/8 | 1/4 | 1-1/4 |
| 826263 | 826363 | 826463 | 7/16 | 1" | 5/16 | 1-1/2 |
| 826265 | 826365 | 826465 | 1/2 | 1-1/8 | 5/16 | 1-1/2 |
| 826270 | 826370 | 826470 | 5/8 | 1-3/8 | 5/16 | 1-3/4 |
| 826275 | 826375 | 826475 | 3/4 | 1-5/8 | 3/8 | 2-1/4 |
| 826280 | 826380 | 826480 | 7/8 | 1-3/4 | 3/8 | 2-1/2 |
| 826285 | 826385 | 826485 | 1" | 2" | 1/2 | 2-3/4 |
| 826290 | 826390 | 826490 | 1-1/8 | 2-1/4 | 1/2 | 3" |
| 826295 | 826395 | 826495 | 1-1/4 | 2-5/8 | 1/2 | 3" |
| 826300 | 826400 | 826500 | 1-1/2 | 2-7/8 | 9/16 | 3" |
