Bullet Nose Pins & Liners

Material: Heat Treated Steel

Finish: Black Oxide

  • Bullet nose pins are often used together with matching liners to align two pieces of fixture. Two versions available, round and relieved.
  • The relieved pins is to locate only radially around the round pin, avoiding redudent location and thurs prevents binding, yet still maintain high accuracy.
Bullet Nose Pins & Liners Drawing

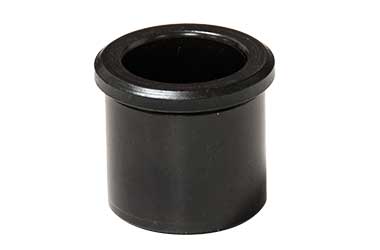

Liners
Bullet Nose Pins & Liners

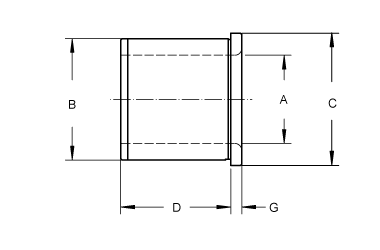

Bullet Nose Pins & Liners Drawing

(Unit: Inch)


Part No. A
+.0004
- .0000		 B
+.0000
- .0003		 C D G CAD
677055-G 0.2501 0.4078 3/8 9/16 1/16 STEP
677060-G 0.3126 0.5017 3/8 5/8 1/16 STEP
677065-G 0.3751 0.6267 1/2 3/4 1/16 STEP
677070-G 0.5001 0.7518 1/2 7/8 1/16 STEP
677073-G 0.7502 1.0018 1/4 1-1/8 1/8 STEP
677075-G 1.0002 1.3771 1/4 1-1/2 1/8 STEP

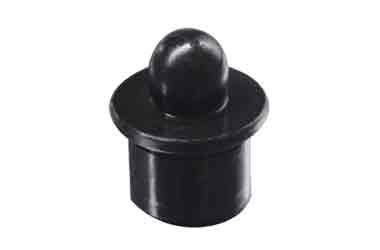

Round Pin
Bullet Nose Pins & Liners

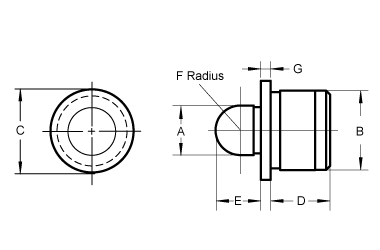

Bullet Nose Pins & Liners Drawing

(Unit: Inch)


Part No. A
+.0000
- .0005		 B
+.0000
- .0003		 C D E F G Used with Liner CAD
677005-G 0.2499 0.4078 9/16 3/8 7/32 1/8 1/16 677055-G STEP
677010-G 0.3124 0.5017 5/8 3/8 9/32 5/32 1/16 677060-G STEP
677015-G 0.3748 0.6267 3/4 1/2 5/16 3/16 1/16 677065-G STEP
677020-G 0.4998 0.7518 7/8 1/2 13/32 1/4 1/16 677070-G STEP
677023-G 0.7498 1.0018 1-1/8 1/4 9/16 3/8 1/8 677073-G STEP
677025-G 0.9998 1.3771 1-1/2 1/4 3/4 1/2 1/8 677075-G STEP

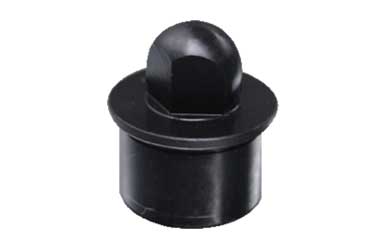

Relieved Pin
Bullet Nose Pins & Liners

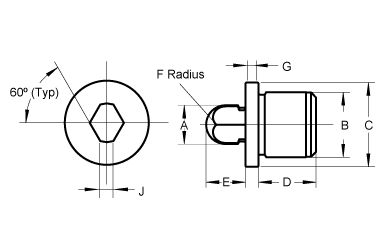

Bullet Nose Pins & Liners Drawing

(Unit: Inch)


Part No. A
+.0000
- .0005		 B
+.0000
- .0003		 C D E F G J Used with Liner CAD
677006-G 0.2499 0.4078 9/16 3/8 7/32 1/8 1/16 0.08 677055-G STEP
677011-G 0.3124 0.5017 5/8 3/8 9/32 5/32 1/16 0.10 677060-G STEP
677016-G 0.3748 0.6267 3/4 1/2 5/16 3/16 1/16 0.12 677065-G STEP
677021-G 0.4998 0.7518 7/8 1/2 13/32 1/4 1/16 0.17 677070-G STEP
677024-G 0.7498 1.0018 1-1/8 1/4 9/16 3/8 1/8 0.25 677073-G STEP
677028-G 0.9998 1.3771 1-1/2 1/4 3/4 1/2 1/8 0.33 677075-G STEP
