Rest Button

Material: Heat Treated Steel

Finish: Black Oxide

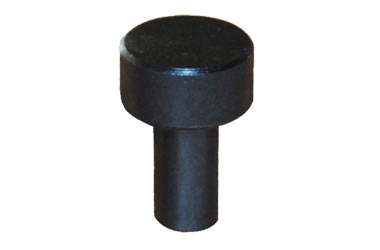

Precision rest button with a press-fit shank. Excellent as either a workpiece support or a jig foot.

Rest Button

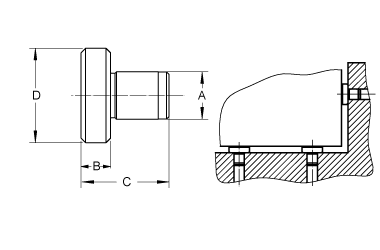

Rest Button Drawing

(Unit: Inch)


Part No. A
+.0000
- .0005		 B
+.001
- .000		 C D CAD
646400-G 0.1885 0.250 5/8 3/8 STEP
646405-G 0.1885 0.375 3/4 3/8 STEP
646410-G 0.1885 0.500 7/8 3/8 STEP
646415-G 0.2510 0.250 3/4 1/2 STEP
646420-G 0.2510 0.375 7/8 1/2 STEP
646425-G 0.2510 0.500 1" 1/2 STEP
646445-G 0.3760 0.250 7/8 5/8 STEP
646450-G 0.3760 0.375 1" 5/8 STEP
646455-G 0.3760 0.500 1-1/8 5/8 STEP
646460-G 0.3760 0.625 1-1/4 5/8 STEP
646461-G 0.3760 0.7500 1-3/8 5/8 STEP
646462-G 0.5010 0.438 1-1/16 7/8 STEP
646475-G 0.5010 0.625 1-1/4 7/8 STEP
646480-G 0.5010 0.750 1-3/8 7/8 STEP
646482-G 0.6260 0.438 1-3/16 1" STEP
646490-G 0.6260 0.500 1-1/4 1" STEP
646515-G 0.7510 0.625 1-1/2 1-1/4 STEP
646516-G 1.0010 0.750 2" 1-1/2 STEP
